Engineered Solutions of Georgia (ESOG) Installs (303) Helical Piles to Support an Elevated Concrete Trail in Appharetta, GA
Project Description
(303) helical piles were installed including end bents/abutments. The large Pedestrian Bridge’s helical piles were deleted due to large, un-locatable, underground utilities in the area
Plans originally called for elevated concrete bents/beams supported by helical piles (+/- 30’ O.C.) to support the bridge beams. The general contractor decided to change that part of the original design and converted it to steel bents. Other design components remained per the original plans.
Click here to read design plan

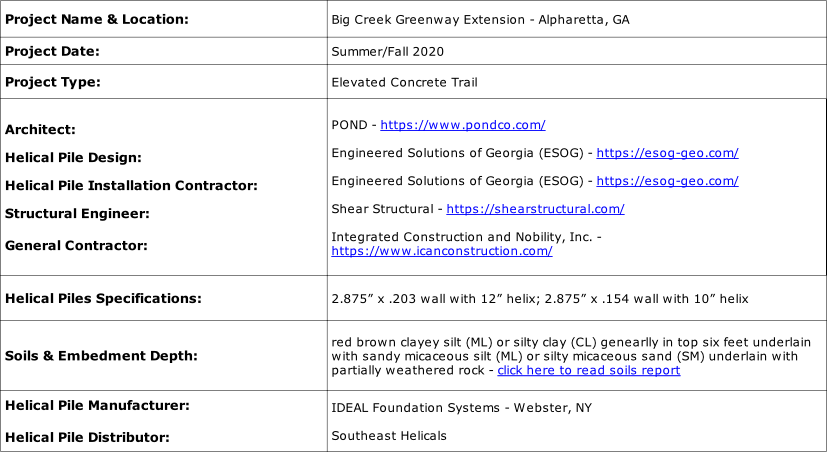

Pile Specs
End Bents/Abutments - 2-7/8” X .203 wall with single 12” Helix
Trail Vertical Piles - Combo 2-7/8” X .203 wall Lead with 3.5” Extension for upper 10’
Trail Battered Piles - Combo 2-3/8” X .154 wall lead with 2-7/8” X .203 wall extension for upper 10’
Click here to read helical pile submittal
Biggest Challenge
Pile locations had to be precise,.as all of the steel construction for the bridge frame was manufactured off-site.
Summer / Fall, 2020
Engineered Solutions of Georgia
2260 N.W. Parkway Suite H
Marietta, GA 30067
678-290-1325
