Project: Suitland Parkway
Location: Upper Marlboro, Maryland Entrance to Andrews Air Force Base
Installer: Breslin Contracting, Inc.
Customer: The Concrete General
Pile Design: The Concrete General
Materials Supplier: Earth Anchoring Suppliers

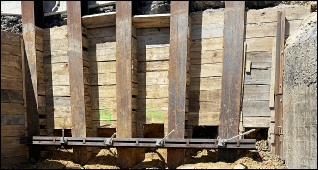

Installed (11) AB Chance SS175 Square shaft helical tieback piles to an embedment of 32’ to support a deep excavation at abutments with the following:
- SS175 10”/12”/14” leads
- SS175 14”/14”/14” Trailer extension
- SS175 extensions
SS175 Termination adapters, 1” Dywidag rods wth nuts and 5”x5” plates

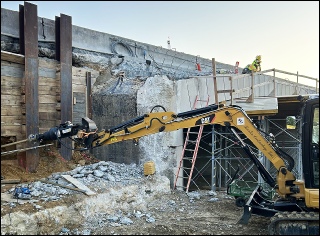

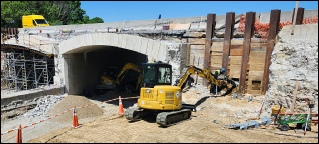

Tiebacks were installed with a CAT 305 excavator equipped with a Digga Drive Head and TorqueHub monitoring system
History: We were called by the customer to provide helical tiebacks in support of their shoring system installation. This is a small part of a multi-year interchange project
Challenges on this project included:
- Provided working elevations made installation difficult
- Unexpected soil condition on a few of the tiebacks
Outcome: A few tiebacks installed to slightly lower torque than required. An additional tieback was added, one was relocated, and a few were installed deeper to compensate
Next Phase: Customer was able to install the balance of the shoring and proceede with excavation
Breslin Installs (11) Helical Tiebacks at Maryland Entrance to Andrews Air Force Base
Spring, 2026
